Twitter| Business Type | Supplier, Trader |
| Country of Origin | India |
| Max. Working Pressure | 4 Kg/cm2 |
| Recommended Flow | 417 lit/min |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |

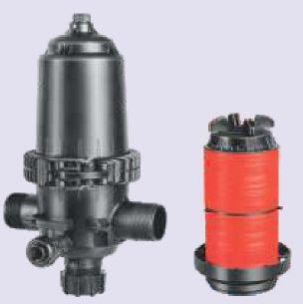

Product Details
Range of Flow Rate
18-27 m3/hr
Filter Disc (standard)
120mesh (Red color Polypropylene Disc)
Closing System
Polyproplene Glass filled Clamp
Distance Between End Connections
337 mm
Cartridge Diameter
122 mm
Cartridge Length
305 mm
Features :
- Flow passes through outside to Inside of Disc cartridge.
- Threaded Brass insert, 2 pressure ports for increasing operational life of filter.
- Surface sealing design, O-ring on periphery of the barrel to ensure the sealing and prevent leakage with time.
- New Complete Plastic Clamp for fast assembly and disassembly the filter housing.
- Easy Dise cartridges installation inside the filter.
- Barrels equipped with 1" Vacuum Breaker to release / intake of air and prevent filter from damage.
Specifications
Graph
