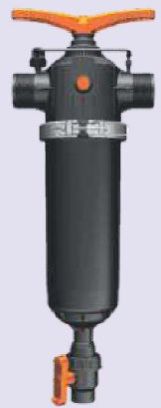

Semi Automatic Disc Filter

Features :

• Flow passes through outside to Inside of Disc cartridge.
• Uniform distribution of flow into filter housing optimize filtration process.
• Filter designed for Pressure rating 8 Bar (PN-8)
• 2male threaded pressure port at the top for easy visibility of pressure.
• Disc cartridge enabled with spring loaded for full compression of disc and loosen during cleaning.
• Filter with Clogging indicator, Red pop up comes out at 0.6 kg/cm’ pressure differential, indicated end user to clean filter manually.
• Barrel with 1%" Drain port.
• Handle for 90 degree rotation for cleaning of disc without dismantling of filter.
• Disc housing fan gives hydro cyclonic effect which makes particles in suspension that reduces cleaning frequency.
• Grooved disc design with dimensional consistency proven with more than 95% filter efficiency.
